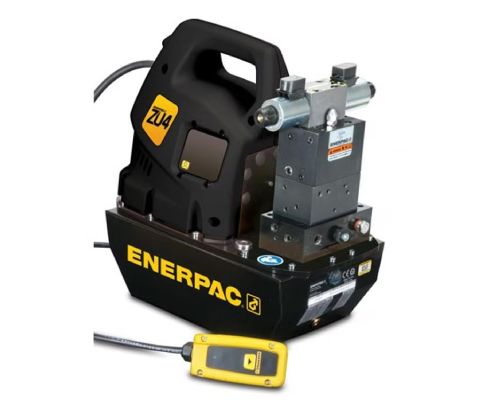

پمپ جک هیدرولیک برقی 700 بار انرپک مدل ZU4408SE
Enerpac ZU Series 2-stage hydraulic electric pumps feature a 1.7 hp universal motor which delivers 60 in3 / min of oil flow at 10,000 psi. They run cooler and have 18% less current draw than comparable pumps. ZU pumps feature our best-in-class Z-Class pum
Model: ZU4408SE | ECCN: EAR99 | Harmonization: 8413500070
Series: ZU | Product Line: Industrial Tools
Series: ZU | Product Line: Industrial Tools
Enerpac ZU Series Electric Hydraulic Pumps provide a high power to weight ratio in a portable and durable format. They feature our Z-Class technology pump platform - widely recognized as the market leader in industrial hydraulic pump technology. The high-flow rates and valve and accessory options allow you to handle a huge number of projects, including long-stroke and multiple cylinder applications.
- Patented Z-Class pump technology provides high by-pass pressures for increased productivity—important in applications using long hose runs and high pressure-drop circuits, like heavy lifting or certain double-acting tools. Enerpac ZU4 Hydraulic Pumps are built to power small to large-sized cylinders or hydraulic tools, or wherever highspeed, intermittent duty, remote hydraulic power is needed.
- Features Z-Class high-efficiency pump design; higher oil flow and bypass pressure, cooler running and requires 18% less current draw than comparable pumps
- Powerful 1.7 hp universal electric motor provides high power-to-weight ratio and excellent low-voltage operating characteristics
- High-strength, molded composite shroud protects motor and electronics, while providing an ergonomic, non-conductive handle for easy transport
- Low-voltage pendant provides additional safety for the operator (remote control units)
- Pro Electric:
- LCD readout provides pressure and a number of diagnostic and readout capabilities never before offered on a portable electric pump
- pump usuage information, hour and cycle counts
- self-test, diagnostic and read-out capabilities
- pressure readout and auto-mode pressure settings
بخشها :
| Cylinder Compatability | Double-acting |
| Reservoir Capacity (cm3) | 8000 |
| Usable Oil Capacity (litres) | 8,0 |
| Output Flow Rate at 7 bar (l/min) | 11,5 |
| Output Flow Rate at 50 bar (l/min) | 8,8 |
| Output Flow Rate at 350 bar (l/min) | 1,2 |
| Output Flow Rate at 700 bar (l/min) | 1,0 |
| Motor Size (hp) | 1.7 |
| Motor Hertz | 50/60 Hz |
| Motor Phases | 1 Ph |
| Motor Voltage | 115 V |
| Duty Cycle | Intermittent |
| Valve Function | Advance / Hold / Retract |
| Valve Operation | Solenoid |
| Valve Type | 4-way, 3-position, Tandem Center |
| Valve Model | VE43 |
| Power Source | Electric |
| Pump Control | Pendant |
| Motor Electrical Specification | 115 V, 1 Ph, 50/60 Hz |
| Sound Level (dBa) | 85 - 90 |
| Relief Valve Adjustment Range (bar) | 140 - 700 |
| Weight (kg) | 39 |
