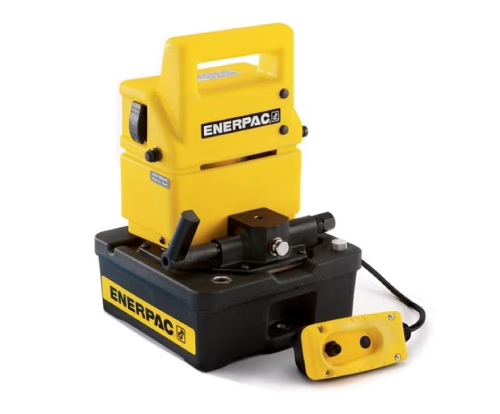

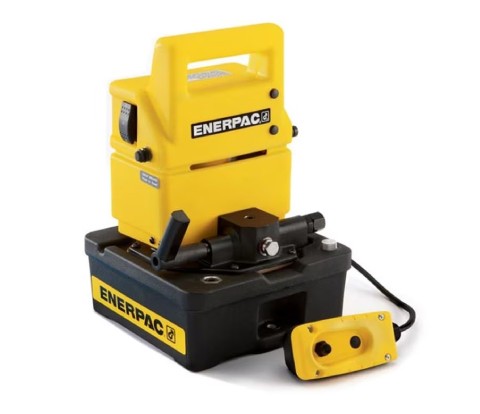

پمپ برقی قابل حمل 700 بار انرپک مدل PUJ1200E
PU Series Economy Electric Hydraulic Pumps are the lightweight, compact, and highly portable choice for operating small to medium single-acting tools intermittently. The universal motor in these two-speed pumps work well with long extension cords or gener
Model: PUJ1200E | ECCN: EAR99 | Harmonization: 8413500070
Series: PU | Product Line: Industrial Tools
Series: PU | Product Line: Industrial Tools
PU Series electric over hydraulic pumps combine economy with high-performance - ideal for intermittent use when working with small to medium size cylinders and other hydraulic tools.
All models in the series are 2-speed for enhanced productivity, and each is supplied with a 10 ft (3 m) cord and control pendant for operator safety. The high-strength molded shroud with integral handle protects the motor from contamination and damage in industrial environments.
Within the PU Series is a selection of pumps that offer a choice of reservoir capacities, valve functions and voltage.
PUD1100 Series
- For advance and retract of single-acting cylinders
- For applications not requiring load holding
- Ideal for punching applications
PUD1300 Series
- Providing advance, hold, and retract of single-acting cylinders
- Ideal for applications requiring load holding
- For applications requiring solenoid valves
PUJ-Series
- Manual valves provide advance, hold, and retract operation
- 3 and 4-way valves for single or double-acting cylinders
- The Economy pump is best suited to power small to medium size cylinders or hydraulic tools. Its lightweight and compact design make it ideal for applications which require easy transport of the pump. The universal motor works well on long extension cords or generator-driven electrical power supplies.
- Manual valves provide advancehold-retract tool operation
- Available with 3- and 4-way valves for single or double-acting cylinders
- 3 m cord with pendant controls the motor operation.
- Lightweight and compact design: 11,8 to 18,6 kg
- Large easy-carry handle for maximum portability
- Two-speed operation reduces cycle times for improved productivity
- 230 VAC 50/60-cycle universal motor will operate under poor voltage supply
- 24 VAC remote motor control, 3 m length for operator safety
- Starts under full load
- High strength molded shroud, with integral handle, protects motor from contamination and damage
- Designed for intermittent duty cycle.
بخشها :
| Maximum Operating Pressure (bar) | 700 |
| Pressure Rating 1st Stage (bar) | 13 |
| Pressure Rating 2nd Stage (bar) | 700 |
| Cylinder Compatability | Single-acting |
| Reservoir Capacity (cm3) | 1900 |
| Usable Oil Capacity (litres) | 1,9 |
| Maximum Flow at Rated Pressure | 0,32 l/min |
| Output Flow Rate 1st Stage (l/min) | 3,31 |
| Output Flow Rate 2nd Stage (l/min) | 0,32 |
| Motor Size (hp) | 0.5 |
| Motor Voltage | 208-240 V |
| Duty Cycle | Intermittent |
| Valve Function | Advance / Hold / Retract |
| Valve Operation | Manual |
| Valve Type | 3-way, 2-position |
| Power Source | Electric |
| Pump Control | Pendant |
| Motor Electrical Specification | 230 V, 50/60 Hz |
| Current Draw (amps) | 9.5 |
| Sound Level (dBa) | 85 |
| Weight (kg) | 12,0 |
