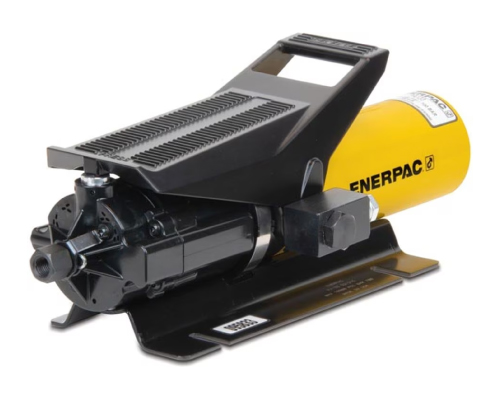

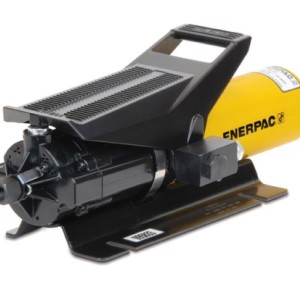

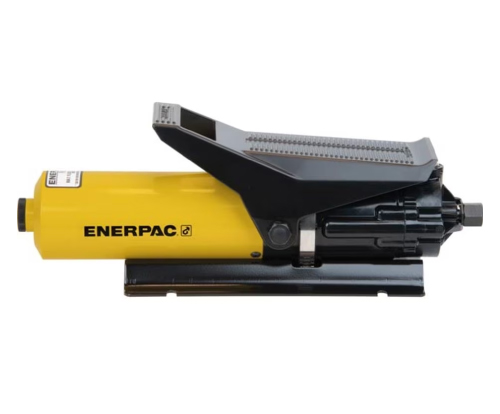

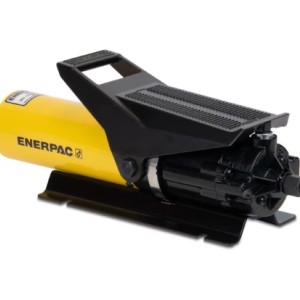

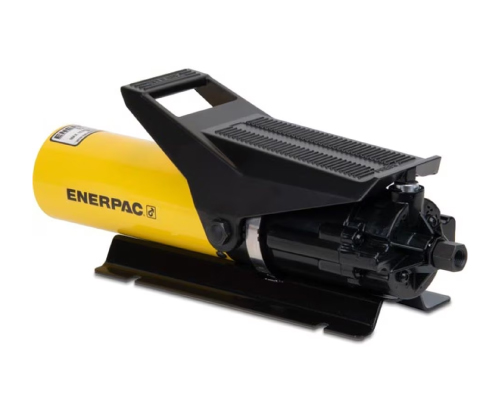

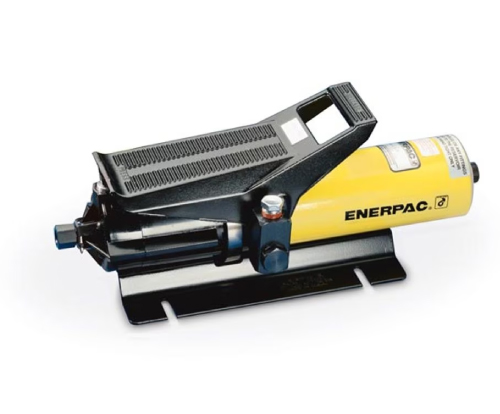

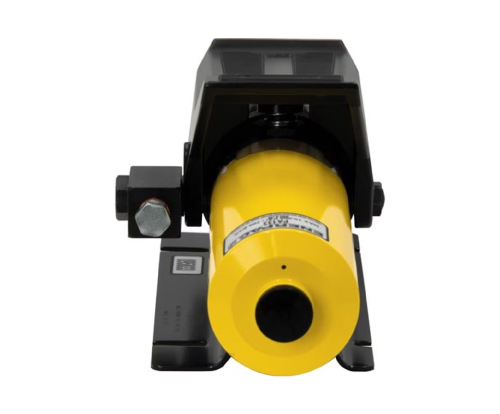

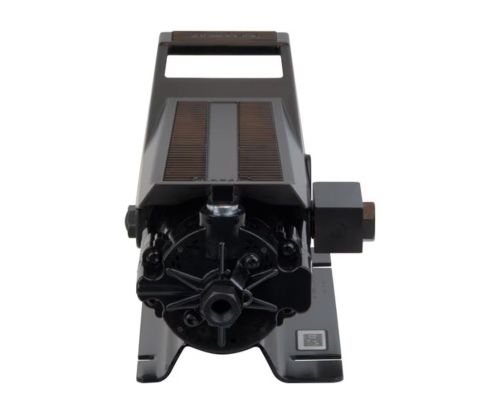

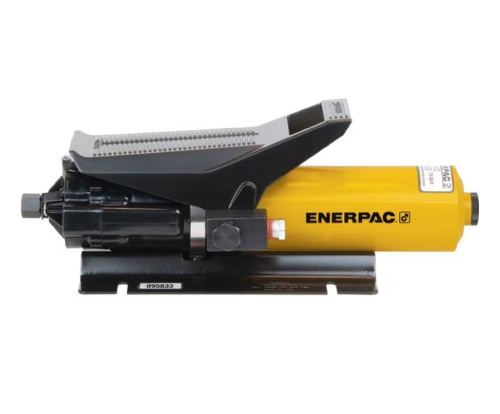

پمپ های هیدرولیک پمپ بادی نیوماتیک 700 بارانرپک مدل PA133
پمپ بادی نیوماتیک 700 بارانرپک مدل PA133

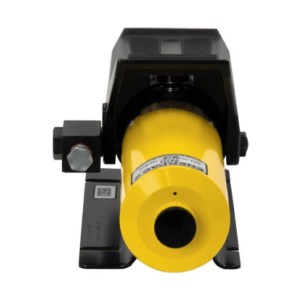

PATG1102N, Turbo II Air Hydraulic Pump, Hand/Foot Operated 3/3 Treadle Valve, 127 in3 Usable Oil, For use with Single-Acting Cylinders PATG1102N, Turbo II Air Hydraulic Pump, Hand/Foot Operated 3/3 Treadle Valve, 127 in3 Usable Oil, For use with Single-Acting Cylinders PATG1102N, Turbo II Air Hydraulic Pump, Hand/Foot Operated 3/3 Treadle Valve, 127 in3 Usable Oil, For use with Single-Acting Cylinders PATG1102N, Turbo II Air Hydraulic Pump, Hand/Foot Operated 3/3 Treadle Valve, 127 in3 Usable Oil, For use with Single-Acting Cylinders PATG1102N, Turbo II Air Hydraulic Pump, Hand/Foot Operated 3/3 Treadle Valve, 127 in3 Usable Oil, For use with Single-Acting Cylinders PATG1102N, Turbo II Air Hydraulic Pump, Hand/Foot Operated 3/3 Treadle Valve, 127 in3 Usable Oil, For use with Single-Acting Cylinders

پمپ بادی نیوماتیک 700 بارانرپک مدل PA133

انرپک
اشتراک گذاری
Enerpac PA Series Hydraulic Air Pumps offer simple operation and easy connection for low-flow, small capacity, single acting applications. These rugged pumps are controlled using the foot or hand operated treadle and are compatible with single-acting tool
محصولات مرتبط
Model: PA133   |  ECCN: EAR99    |   Harmonization: 8413500080
Series: PA   |  Product Line: Industrial Tools

Enerpac PA Series Air Over Hydraulic Pumps are robust, simple to use, and easy to service. The series includes several models with varying reservoir capacities, air consumption, and maximum operating pressures.

All models can be used either by foot or hand to advance and retract your single-acting hydraulic tool. The PA133 and PA1150 models also provide a hold capability.

The swivel coupling enables simple connection and hassle-free operation. The PA133, PA135, and PA136 models include base mounting slots.

The maximum operating pressure depends upon the model, and ranges from 3,000-10,000 psi (207-700 bar). Maximum flow rates at rated pressures range from 8 in3/min up to 120 in3/min (0.13L – 1.97L).

PA-Series at a Glance:

  • PA133: Advance / Hold / Retract. Max 10,000 psi. Max flow 8 in3/min (0.13 l/min).
  • PA1150: Advance / Hold / Retract. Max 10,000 psi. Max flow 8 in3/min (0.13 l/min). Extra oil capacity.
  • PA135: Advance / Retract. Max 5,000 psi. Max flow 60 in3/min. (0.98 l/min).
  • PA136: Advance / Retract. Max 3,000 psi. Max flow 120 in3/min (1.97 l/min).
  • Rugged construction - built for long life and easy service
  • Swivel coupling simplifies hydraulic connection and pump operation
  • Three-position treadle provides cylinder advance, hold and retract operation
بخشها :
Maximum Operating Pressure (bar) 700
Cylinder Compatability Single-acting
Reservoir Capacity (cm3) 589
Usable Oil Capacity (cm3) 589
Maximum Flow at Rated Pressure 0,13 l/min
Output Flow Rate No Load (l/min) 0,65
Output Flow Rate Load (l/min) 0,13
Valve Function Advance / Hold / Retract
Valve Operation Manual
Power Source Air
Air Pressure Range (bar) 4,1 - 8,3
Sound Level (dBa) 85
Weight (kg) 5,4
