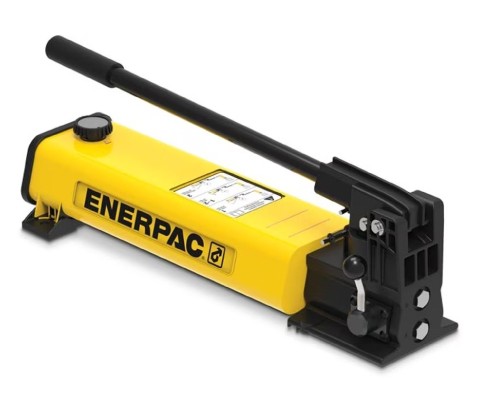

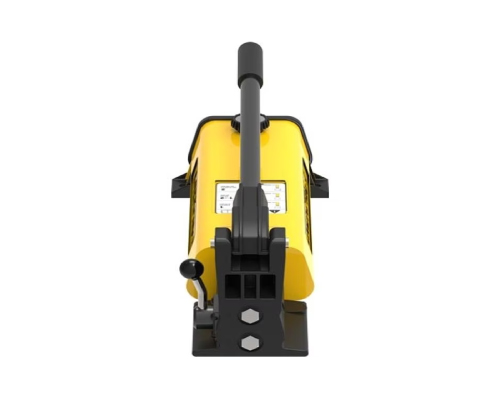

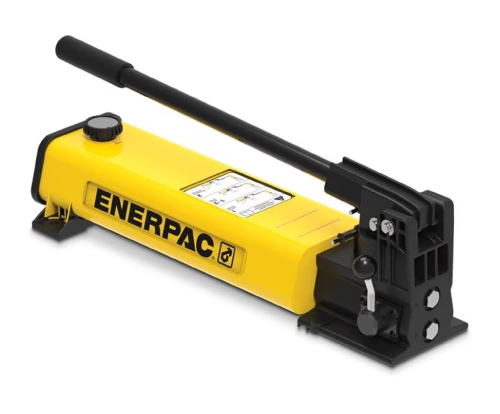

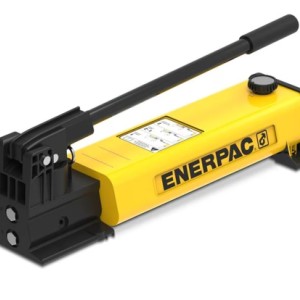

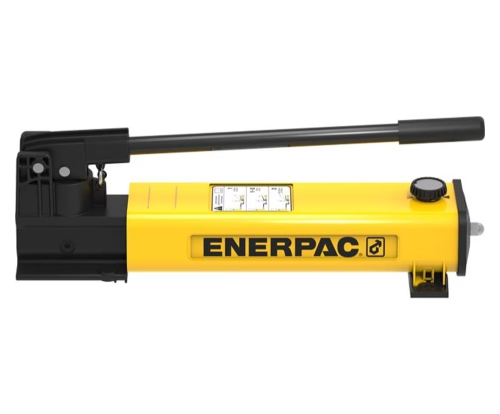

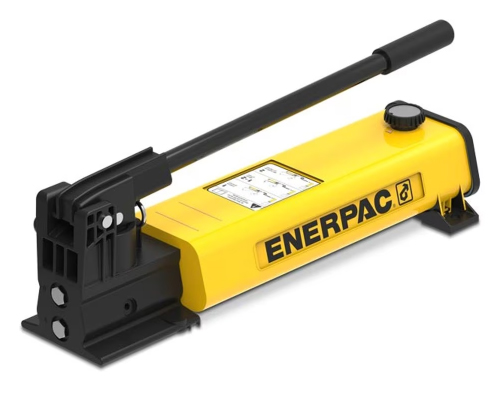

پمپ دستی 700 بار تک سرعته دوطرفه انرپک مدل P842
Series: P | Product Line: Industrial Tools
Enerpac lightweight hydraulic hand pumps are a convenient alternative to heavier steel pumps without any sacrifice in performance or safety. Each model is rated up to 10,000 psi (700 bar).
The durable glass-filled nylon reservoir and nylon encapsulated aluminum pump base offers an unrivalled combination of strength, weight, and resistance to corrosion.
Lightweight single-speed hydraulic hand pumps offer the simplicity needed for a wide range of industrial applications. The 2-stage hydraulic models reduce the number of handle strokes by as much as 78% compared to a single speed pump. This is ideal when you want to advance a tool such as a cylinder to the point of load contact. High flow is delivered when it’s needed most before the pump automatically switches to the low flow high-pressure stage.
With a choice of oil capacities up to 453 in3 (7423 cm3), we’re certain you’ll find a lightweight hydraulic hand pump to handle multiple cylinder hook-ups. For compatibility with double-acting tools choose the P842.
- Lightweight and compact design
- Durable glass-filled nylon reservoir and nylon encapsulated aluminum pump base for maximum corrosion resistance
- Two-speed operation on most models reduces handle strokes by as much as 78% over single speed pumps
- Lower handle effort to minimize operator fatigue
- Handle lock and lightweight construction for easy carrying
- Large oil capacities to power a wide range of cylinders or tools
- Non-conductive fiberglass handle for operator safety
- Internal pressure relief valve for overload protection
| Maximum Operating Pressure (bar) | 700 |
| Pressure Rating 1st Stage (bar) | 27 |
| Pressure Rating 2nd Stage (bar) | 700 |
| Cylinder Compatability | Double-acting |
| Pump Type | Two Speed |
| Reservoir Capacity (cm3) | 2540 |
| Usable Oil Capacity (cm3) | 2540 |
| Maximum Flow at Rated Pressure | 2,47 cm3/stroke |
| Oil Displacement Per Stroke 1st Stage (cm3) | 39,33 |
| Oil Displacement Per Stroke 2nd Stage (cm3) | 2,47 |
| Maximum Handle Effort (kg) | 43,1 |
| Piston Stroke (mm) | 25,4 |
| Valve Operation | Manual |
| Power Source | Manual |
| Weight (kg) | 10,0 |
