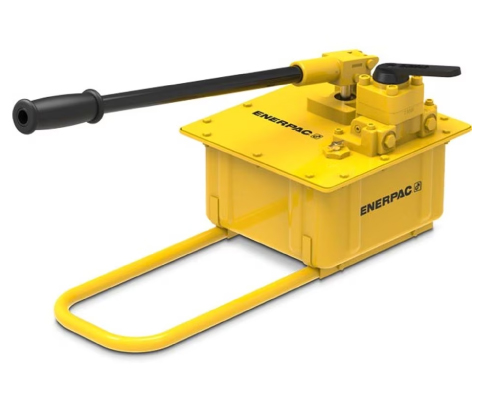

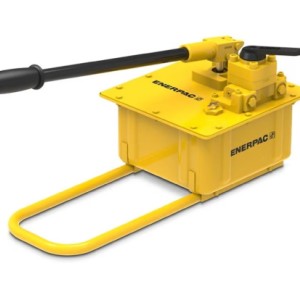

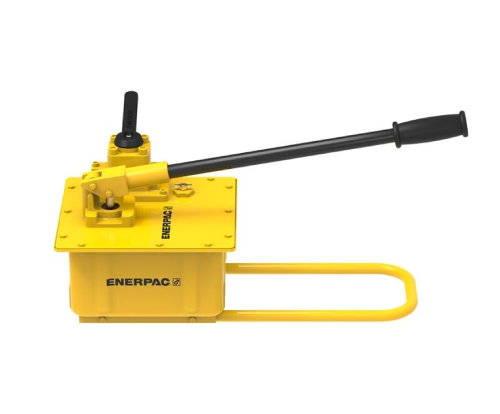

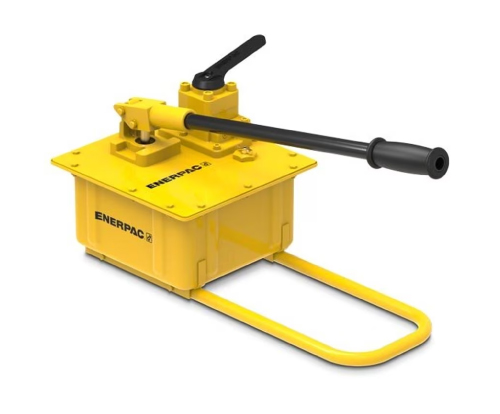

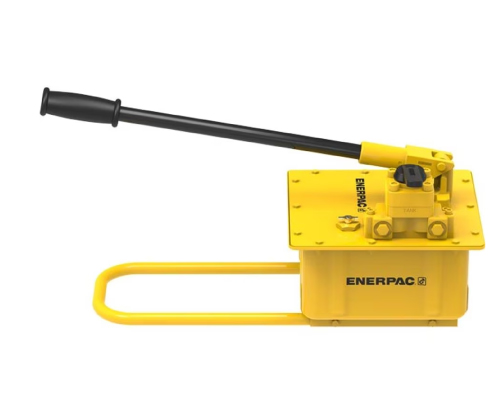

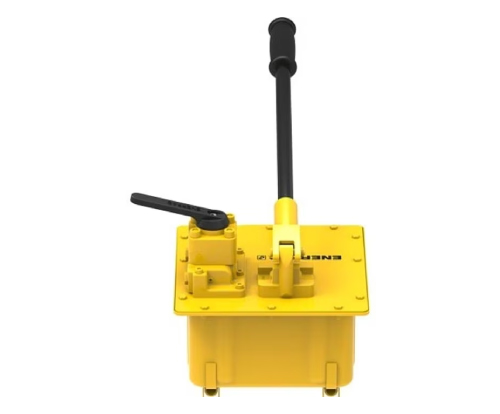

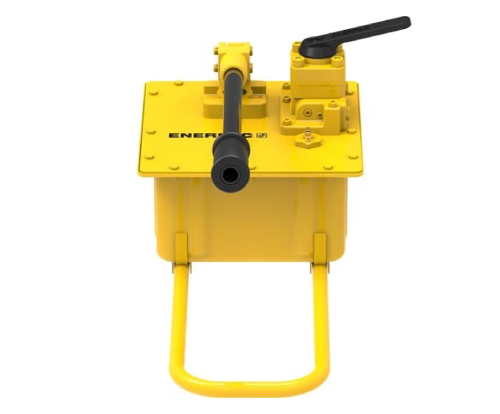

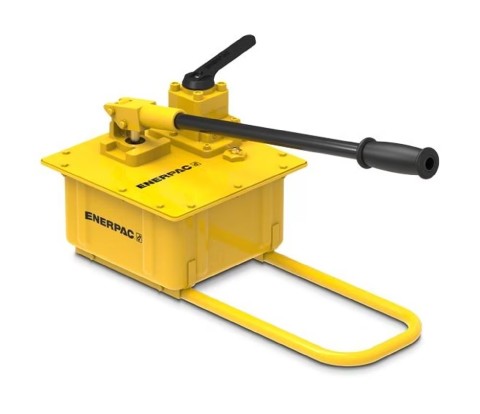

پمپ دستی دوطرفه تک سرعته 700 بار انرپک مدل P464

انرپک
Enerpac P-Series, Ultima Steel Hydraulic Hand Pumps are durable, portable, and easy to use. The range features 2 stage hydraulic pumps for superior speed, and generous oil capacities - ideal for operating multiple hydraulic cylinders. The P84 and P464 are
Model: P464   |  ECCN: EAR99    |   Harmonization: 8413200000
Series: P   |  Product Line: Industrial Tools

Ultima Steel Hand Pumps are durable, portable, and highly efficient. Each model in the series features an all-steel construction, a chrome plated plunger, and a wiper system for long-lasting performance.

All except the P39 are 2 stage pumps, which reduces the number of handle strokes by as much as 78% compared to a single speed pump. This is ideal for applications when high flow is needed at the first stage, (such as when advancing a cylinder to the point of load contact). The pump switches automatically to the second stage which is the low flow high-pressure stage.

With a choice of oil capacities up to 453 in3 (7423 cm3), you will find Ultima Steel Hand Pumps that can handle multiple cylinder hook-ups, including models to suit either single-acting and double-acting cylinders.

  • Reduced handle effort and ergonomic grip for less operator fatigue
  • Vent free reservoir eliminates spills
  • Quick grip handle allows for easy transport
  • Integral reservoir over-pressurization protection
Maximum Operating Pressure (bar) 700
Pressure Rating 1st Stage (bar) 14
Pressure Rating 2nd Stage (bar) 700
Cylinder Compatability Double-acting
Pump Type Two Speed
Reservoir Capacity (cm3) 7423
Usable Oil Capacity (cm3) 7423
Maximum Flow at Rated Pressure 4,75 cm3/stroke
Oil Displacement Per Stroke 1st Stage (cm3) 126,20
Oil Displacement Per Stroke 2nd Stage (cm3) 4,75
Maximum Handle Effort (kg) 49
Piston Stroke (mm) 38,1
Valve Operation Manual
Power Source Manual
Weight (kg) 27,7
