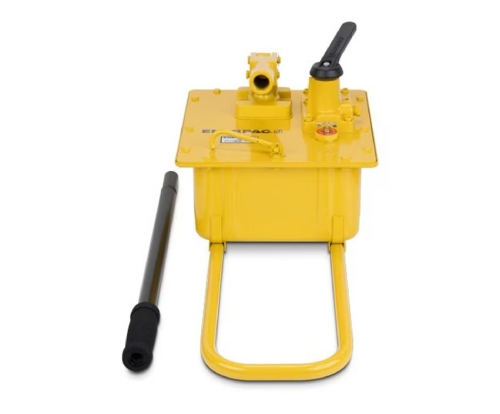

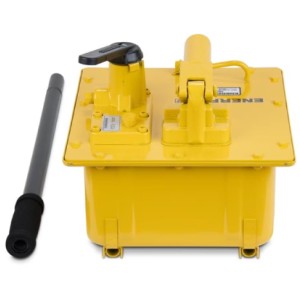

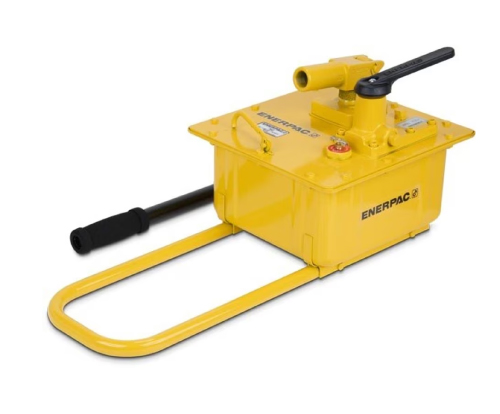

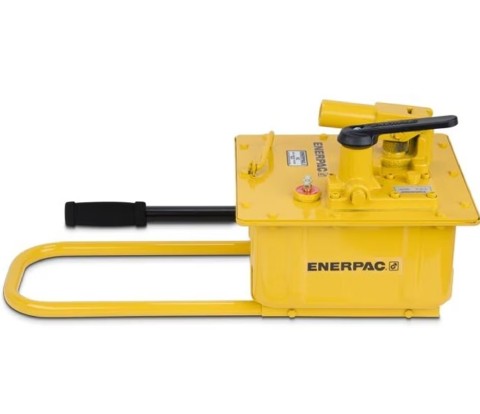

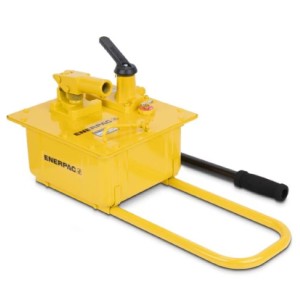

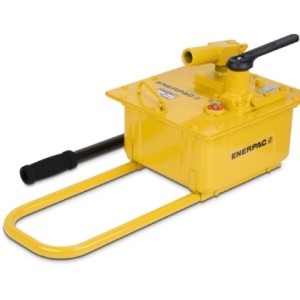

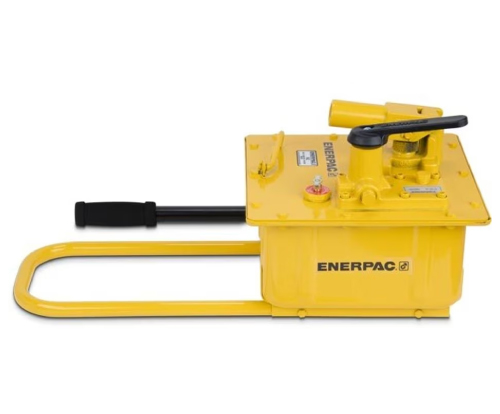

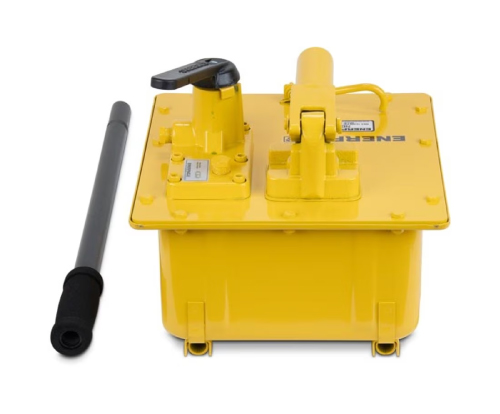

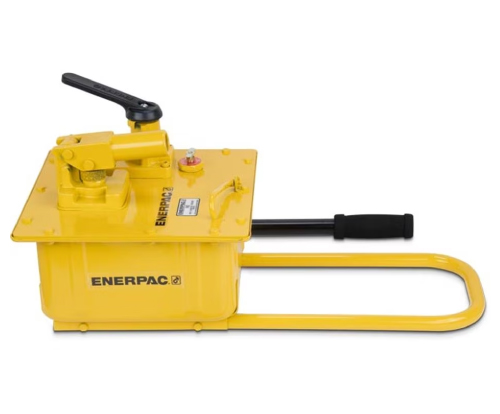

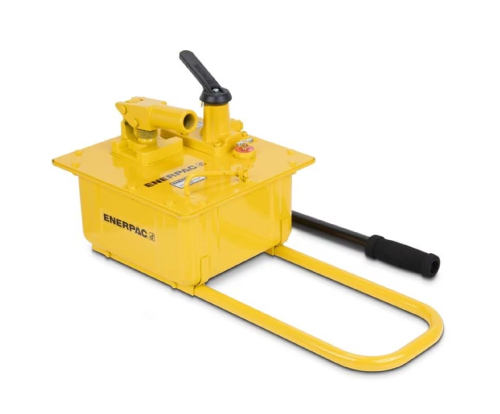

پمپ دستی 700 بار دو سرعته انرپک مدل P462
Enerpac lightweight hydraulic hand pumps are compact and easy to carry. P462 is the only lightweight hand pump model compatible with double-acting cylinders and tools.
Model: P462 | ECCN: EAR99 | Harmonization: 8413200000
Series: P | Product Line: Industrial Tools
Series: P | Product Line: Industrial Tools
- Reduced handle effort and ergonomic grip for less operator fatigue
- Vent free reservoir eliminates spills
- Quick grip handle allows for easy transport
- Integral reservoir over-pressurization protection
بخشها :
| Maximum Operating Pressure (bar) | 700 |
| Pressure Rating 1st Stage (bar) | 14 |
| Pressure Rating 2nd Stage (bar) | 700 |
| Cylinder Compatability | Single-acting |
| Pump Type | Two Speed |
| Reservoir Capacity (cm3) | 7423 |
| Usable Oil Capacity (cm3) | 7423 |
| Maximum Flow at Rated Pressure | 4,75 cm3/stroke |
| Oil Displacement Per Stroke 1st Stage (cm3) | 126,20 |
| Oil Displacement Per Stroke 2nd Stage (cm3) | 4,75 |
| Maximum Handle Effort (kg) | 49 |
| Piston Stroke (mm) | 38,1 |
| Valve Operation | Manual |
| Power Source | Manual |
| Weight (kg) | 27,7 |
