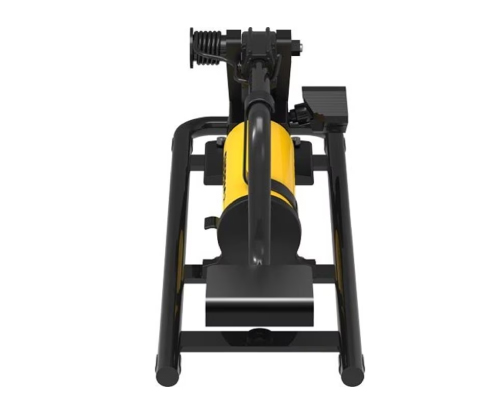

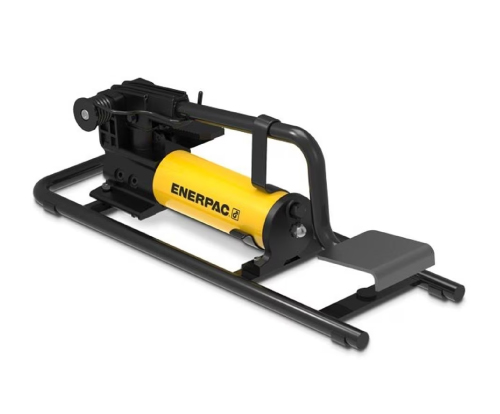

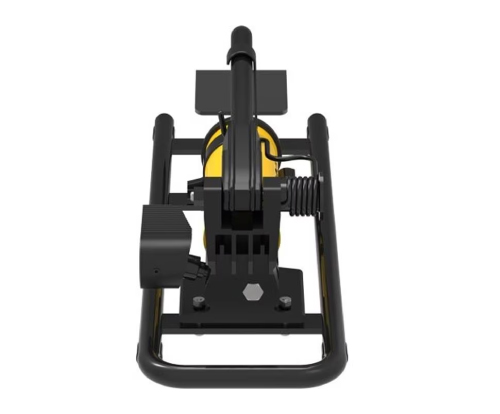

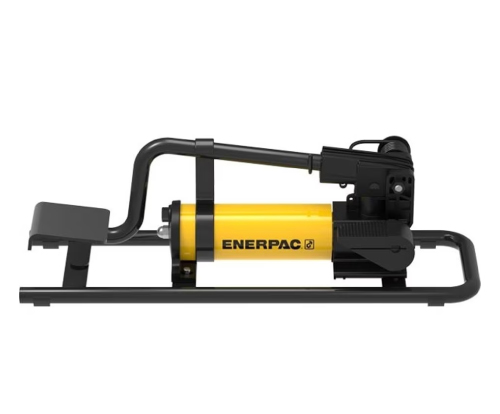

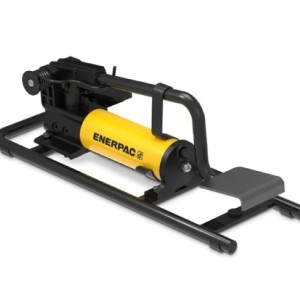

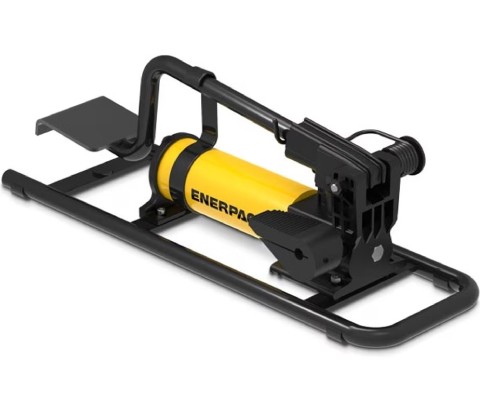

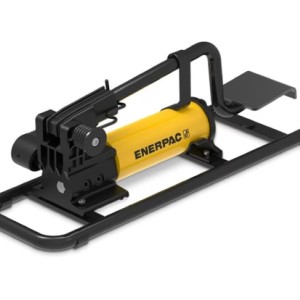

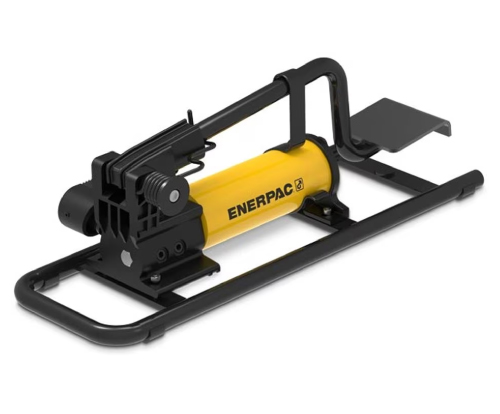

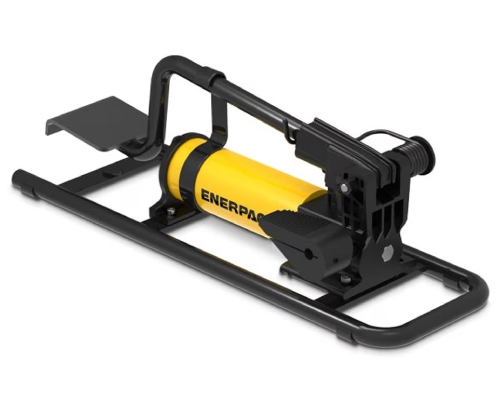

پمپ پایی پدالی700 بار دو سرعته انرپک مدل P392FP
Series: P | Product Line: Industrial Tools
Set your hands free to control your cylinder or tool with this high-pressure foot pump. The steel lever pedal and a foot operated release valve also help to protect your posture by eliminating the need to bend over to operate the pump.
The P392FP pump features a steel frame for maximum stability and a footpad to operate the release valve. The compact and lightweight design also includes a foot pedal lock for easy portability.
Compared to a single speed type, this 2 speed pump can reduce pedal strokes by as much as 78%. This feature delivers high flow at the first stage - such as when advancing a cylinder to the point of load contact. As it reaches this point, the pump automatically switches to the low flow high-pressure stage.
The P392FP pump is compatible with a wide range of single-acting hydraulic cylinders and other tools.
- Robust, durable and compact
- Steel frame for maximum stability
- Steel pumping handle
- Aluminum reservoir
- Foot pedal lock and lightweight construction for portability
- Two-speed operation reduces foot pedal strokes
- Large foot-pad release valve for controlling load descent
- Integral pressure relief valve for overload protection
| Maximum Operating Pressure (bar) | 700 |
| Pressure Rating 1st Stage (bar) | 15 |
| Pressure Rating 2nd Stage (bar) | 700 |
| Cylinder Compatability | Single-acting |
| Pump Type | Two Speed |
| Reservoir Capacity (cm3) | 492 |
| Usable Oil Capacity (cm3) | 492 |
| Maximum Flow at Rated Pressure | 2,47 cm3/stroke |
| Oil Displacement Per Stroke 1st Stage (cm3) | 11,26 |
| Oil Displacement Per Stroke 2nd Stage (cm3) | 2,47 |
| Maximum Handle Effort (kg) | 42 |
| Piston Stroke (mm) | 25,4 |
| Valve Operation | Manual |
| Power Source | Manual |
| Weight (kg) | 7,0 |
