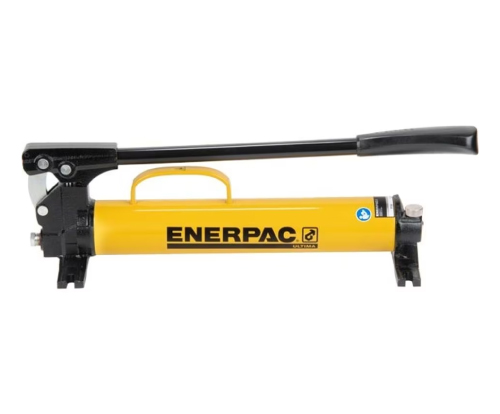

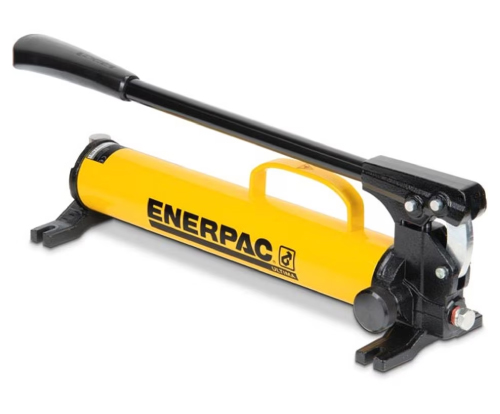

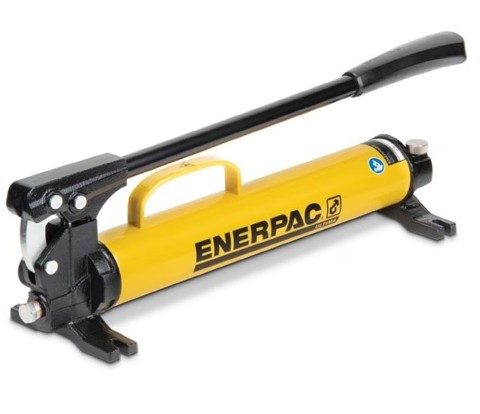

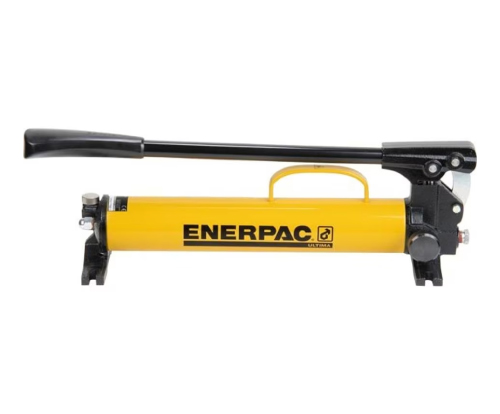

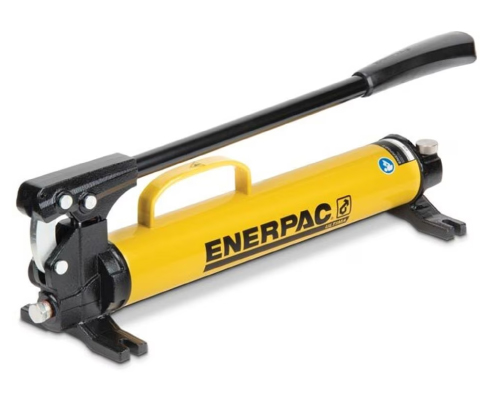

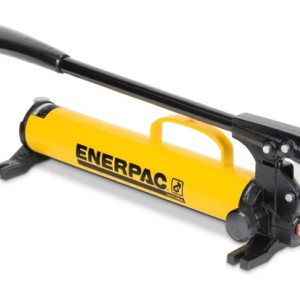

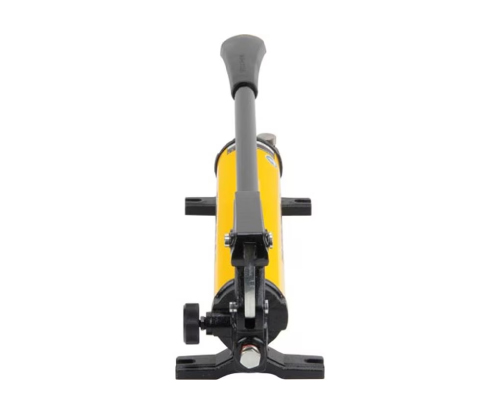

پمپ دستی 700 بار تک سرعته انرپک مدل P39
Series: P | Product Line: Industrial Tools
Ultima Steel Hand Pumps are durable, portable, and highly efficient. Each model in the series features an all-steel construction, a chrome plated plunger, and a wiper system for long-lasting performance.
All except the P39 are 2 stage pumps, which reduces the number of handle strokes by as much as 78% compared to a single speed pump. This is ideal for applications when high flow is needed at the first stage, (such as when advancing a cylinder to the point of load contact). The pump switches automatically to the second stage which is the low flow high-pressure stage.
With a choice of oil capacities up to 453 in3 (7423 cm3), you will find Ultima Steel Hand Pumps that can handle multiple cylinder hook-ups, including models to suit either single-acting and double-acting cylinders.
- Reduced handle effort and ergonomic grip for less operator fatigue
- Vent free reservoir eliminates spills
- Quick grip handle allows for easy transport
- Integral reservoir over-pressurization protection
| Maximum Operating Pressure (bar) | 700 |
| Pressure Rating 1st Stage (bar) | 700 |
| Pressure Rating 2nd Stage (bar) | - |
| Cylinder Compatability | Single-acting |
| Pump Type | Single Speed |
| Reservoir Capacity (cm3) | 672 |
| Usable Oil Capacity (cm3) | 672 |
| Maximum Flow at Rated Pressure | 2,46 cm3/stroke |
| Oil Displacement Per Stroke 1st Stage (cm3) | Steel2,46 |
| Oil Displacement Per Stroke 2nd Stage (cm3) | - |
| Maximum Handle Effort (kg) | 39 |
| Piston Stroke (mm) | 25,4 |
| Valve Operation | Manual |
| Power Source | Manual |
| Weight (kg) | 6,2 |
