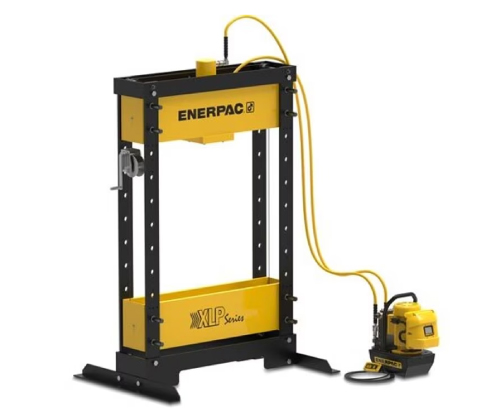

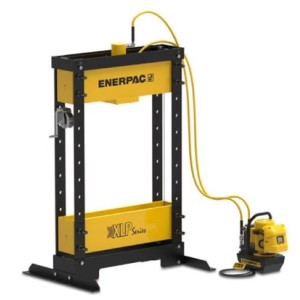

پرس هیدرولیک دروازه ای انرپک مدل XLP5013ZES
Model: XLP5013ZES | Series: XLP | Product Line: Industrial Tools
محصولات مرتبط
Model: XLP5013ZES | Series: XLP | Product Line: Industrial Tools
- The XLP5013ZES offers an exceptional value with features including adjustable lower and upper bolsters, a horizontally adjustable double acting long stroke RR-Cylinder and a powerful high speed 1.5 hp electric-pump.
- These presses come standard as unassembled kits which include the frame, winch, cylinder, pump, gauge, couplers and hose. For premium performance in more demanding applications, Enerpac also offers the IP Press Series, which features heavy duty welded frames and a broad range of cylinder and pump options.
- Cut-away in lower frame for pallet truck access allows easy transportation

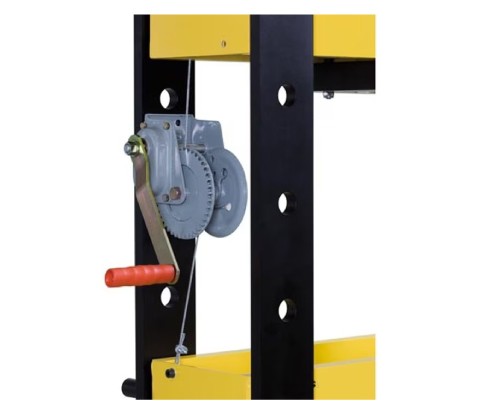

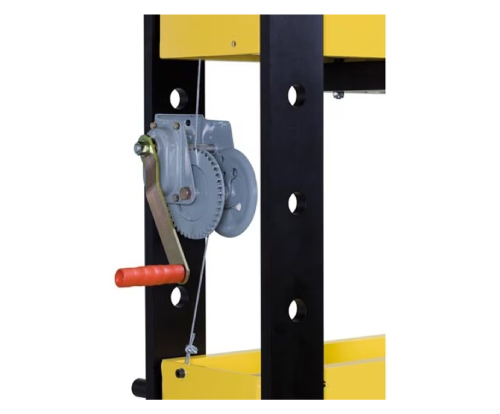

- Easy height adjustment with integrated winch mechanism

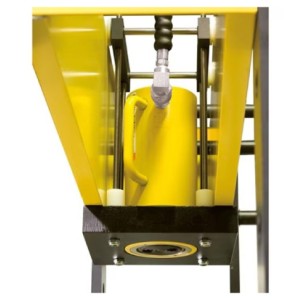

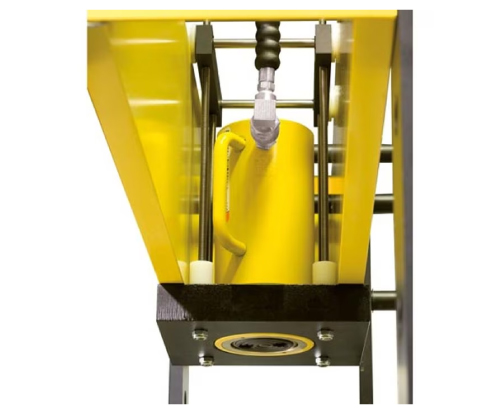

- Horizontal cylinder adjustment enables flexible load placement
بخشها :
| Maximum Operating Pressure (bar) | 700 |
| Press Capacity (kN) | 498 |
| Capacity (kN) | 498 |
| Maximum Vertical Daylight (mm) | 960 |
| Maximum Bed Width (mm) | 990 |
| Power Source Type | Electric |
| Power Source Valve | Electric |
| Pump Model Number | ZE4408SB |
| Cylinder Type | Double-Acting |
| Cylinder Stroke (mm) | 334 |
| Rapid Advance Speed (mm/stroke) | - |
| Pressing Speed (mm/stroke) | - |
| Rapid Advance Speed (mm/sec) | 24,9 |
| Pressing Speed (mm/sec) | 2,3 |
| Weight (kg) | 694 |
