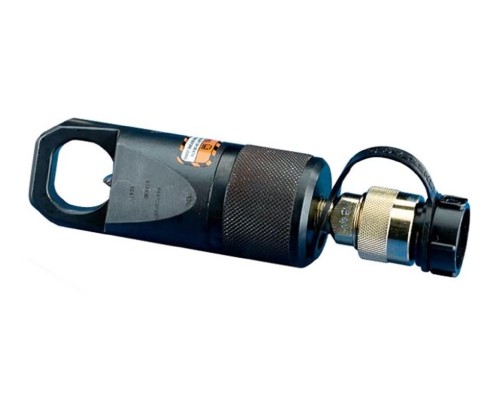

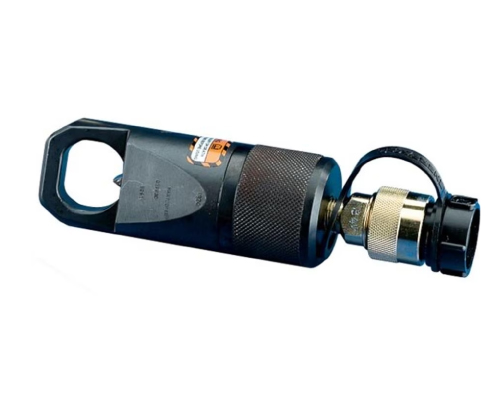

مهره بر هیدرولیکی نات اسپلیتر انرپک مدل NC3241
Model: NC3241 | ECCN: EAR99 | Harmonization: 8479899599
Series: NC | Product Line: Industrial Tools, Bolting Tools
Series: NC | Product Line: Industrial Tools, Bolting Tools
Model: NC3241 | ECCN: EAR99 | Harmonization: 8479899599
Series: NC | Product Line: Industrial Tools, Bolting Tools
Series: NC | Product Line: Industrial Tools, Bolting Tools
- Compact and ergonomic design, easy to use
- Unique angled head allows flush access
- Single-acting, spring return cylinder
- Heavy-duty chisels can be reground
- Applications include servicing trucks, piping industry, tank cleaning, petrochemical, steel construction and mining
- For applications with bolt sizes that are common to two tool model sizes, we recommend to select the larger of the two tools for the best results.
بخشها :
| Maximum Operating Pressure (bar) | 700 |
| Capacity (kN) | 196 |
| Cutter Head Return Type | Single-Acting, Spring Return |
| Hexagon Nut Range (mm) | 32 - 41 |
| Bolt Range (mm) | M22 - M27 |
| Maximum Material Hardness | HRC 44 |
| Oil Capacity (cm3) | 80 |
| Replacement Chisel Model Number (Moving) | NCB3241 |
| Weight (kg) | 4.4 |
