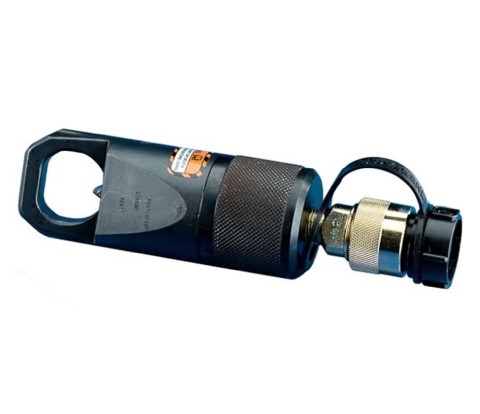

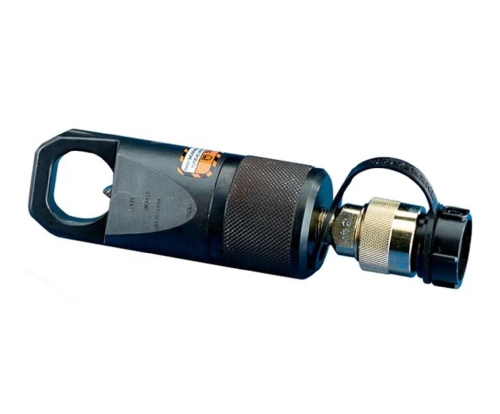

مهره بر هیدرولیکی نات اسپلیتر انرپک مدل NC2432
Model: NC2432 | ECCN: EAR99 | Harmonization: 8479899599
Series: NC | Product Line: Industrial Tools, Bolting Tools
Series: NC | Product Line: Industrial Tools, Bolting Tools
Model: NC2432 | ECCN: EAR99 | Harmonization: 8479899599
Series: NC | Product Line: Industrial Tools, Bolting Tools
Series: NC | Product Line: Industrial Tools, Bolting Tools
- Compact and ergonomic design, easy to use
- Unique angled head allows flush access
- Single-acting, spring return cylinder
- Heavy-duty chisels can be reground
- Applications include servicing trucks, piping industry, tank cleaning, petrochemical, steel construction and mining
- For applications with bolt sizes that are common to two tool model sizes, we recommend to select the larger of the two tools for the best results.
بخشها :
| Maximum Operating Pressure (bar) | 700 |
| Capacity (kN) | 147 |
| Cutter Head Return Type | Single-Acting, Spring Return |
| Hexagon Nut Range (mm) | 24 - 32 |
| Bolt Range (mm) | M16 - M22 |
| Maximum Material Hardness | HRC 44 |
| Oil Capacity (cm3) | 60 |
| Replacement Chisel Model Number (Moving) | NCB2432 |
| Weight (kg) | 3.0 |
