آچار هیدرولیکی بکسی انرپک مدل S11000X

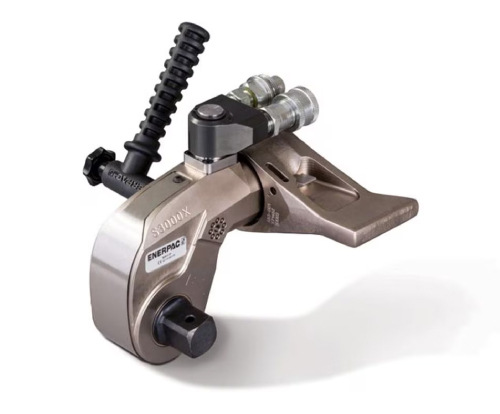

Compact, high-strength steel square drive hydraulic torque wrench for use with sockets. Single body construction provides superior durability and reliability for heavy users.
Model: S11000X | ECCN: EAR99 | Harmonization: 8479899599
Series: S | Product Line: Bolting Tools
Series: S | Product Line: Bolting Tools
S-Series Square Drive Hydraulic Torque Wrenches are the reliable choice for repetitive heavy industrial use. Built for heavy-duty bolting and enduring durability, these powerful tools provide a low total cost of ownership.
The single body design is constructed from tough steel, making it more durable for heavy users than alternative aluminum and modular designs.
With ATEX certification you can be reassured that S-Series Torque Wrenches meet the necessary safety standards for safe use in potentially explosive environments.
Safety and Performance
- Compact, high-strength single-body construction provides a small operating radius without sacrificing endurance.
- 35 degree rotation angle and rapid return stroke for fast operation.
- Tough manifold design with added safety feature for enhanced operator safety.
- 360 degree click-on reaction arm with quick release lever provides easier handling, even when wearing gloves.
- Includes robust handle which mounts on both sides of tool for extra maneuverability.
- Push button square drive release for quickly reversing the square drive for tightening or loosening.
- Available with optional enhanced tilt and swivel TSP300 manifold for horizontal and vertical maneuverability, with greater durability*
- Constant torque output provides accuracy of +/-3% across full stroke.
- Optional Angle-of-Turn Indicator provides measurement of rotation.
- Shipped complete with a calibration certificate.
- CE-ATEX certified for safe use in explosive environments.
بخشها :
| Square Drive (in) | 1 1/2 |
| Nominal Torque Rated At | 10,000 psi 690 bar |
| Maximum Torque Output (Ft.lbs) | 11175 |
| Maximum Torque Output (Nm) | 15151 |
| Minimum Torque Rated At | 1000 psi 69 bar |
| Minimum Torque (Ft.lbs) | 1118 |
| Minimum Torque (Nm) | 1515 |
| Weight (kg) | 15.7 |
