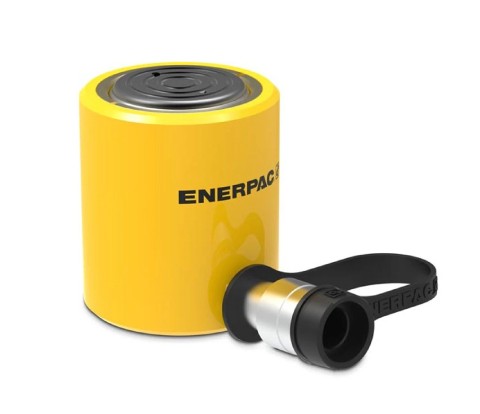

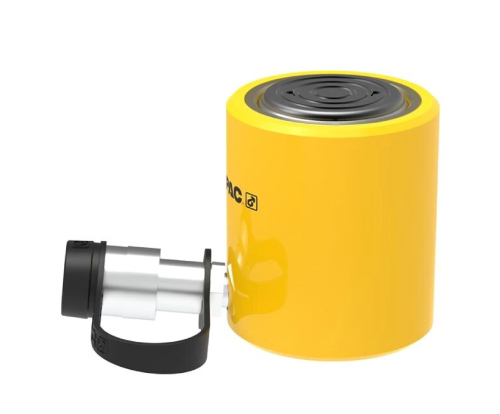

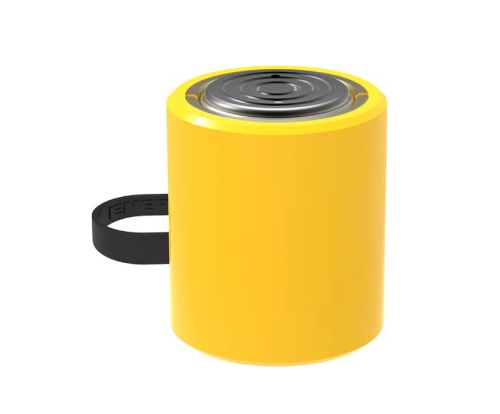

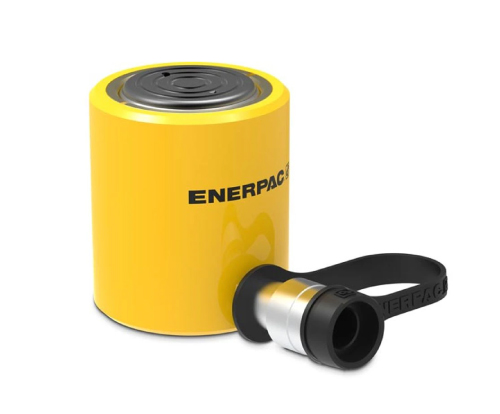

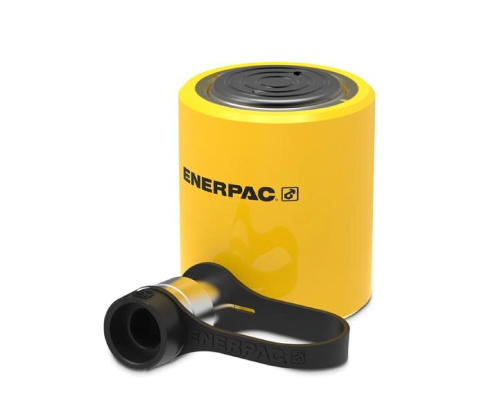

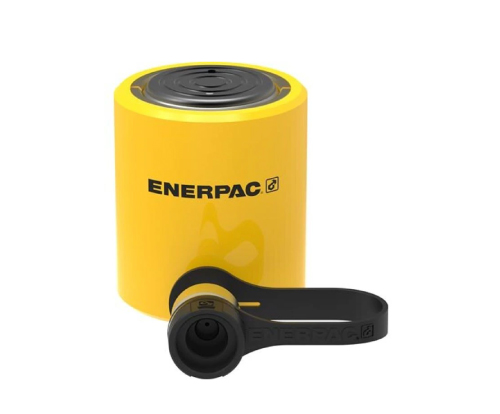

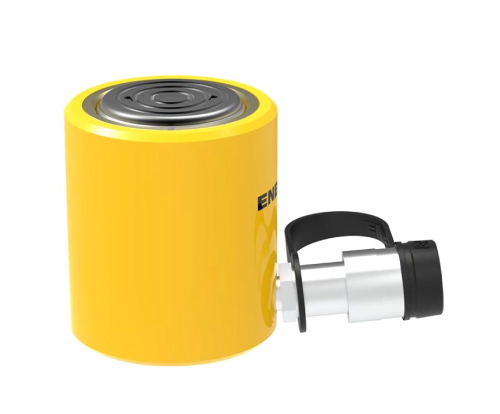

جک استوانه ای 30 تن انرپک مدل RCS302

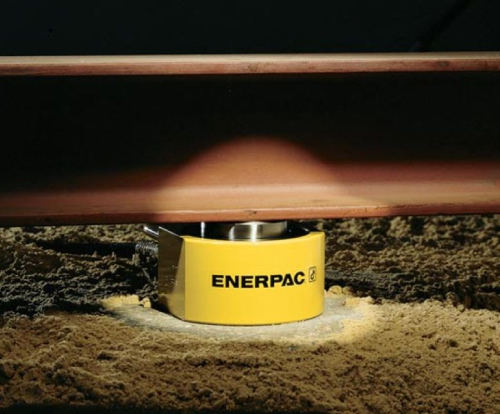

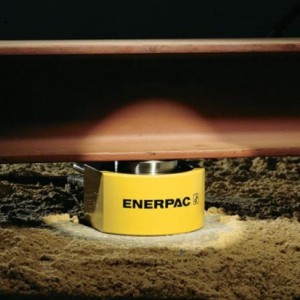

RCS-Series Low Profile Hydraulic Cylinders feature a short-collapsed height, which is ideal for applications with limited space. These Low Profile Jacks are commonly used to lift or jack a load.
Model: RCS302 | ECCN: EAR99 | Harmonization: 8412210075
Series: RCS | Product Line: Industrial Tools
Series: RCS | Product Line: Industrial Tools
RCS-Series Low Profile Hydraulic Cylinders provide superior durability, performance longevity, safety, and quality in a compact and convenient footprint. These low profile hydraulic jacks are the perfect choice for general lifting and production applications where space is limited or constrained. A low collapsed height, short stroke, and solid construction enables safety and stability in both vertical and horizontal orientations.
Many low-profile hydraulic cylinders rely on the weight of the load to retract the plunger. RCS cylinders are different and include a powerful return spring, which is faster, convenient, and more productive. The entire RCS cylinder range is rated for high-pressure; 10,000 psi (700 bar).
- Lightweight, low profile design for use in confined spaces
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending cylinder life
- CR-400 coupler and dust cap included on all models
- Grooved plunger end with threaded holes for mounting tilt saddles
- Plated steel plungers
- Single-acting spring return
بخشها :
| Maximum Operating Pressure (bar) | 700 |
| Capacity Class (tonnage) | 30 |
| Maximum Cylinder Capacity Advance (kN) | 295 |
| Stroke (mm) | 62 |
| Collapsed Height A (mm) | 117 |
| Extended Height B (mm) | 179 |
| Return Type | Single-Acting, Spring Return |
| Plunger Type | Solid |
| Material | Steel |
| Cylinder Effective Area Advance (cm2) | 42,1 |
| Oil Capacity Advance (cm3) | 261 |
| Surface Treatment | Paint |
| Coupler | CR400 Coupler |
| Weight (kg) | 6,8 |
